Quantum ESPRESSO is an integrated suite of Open-Source computer codes for electronic-structure calculations and materials modeling at the nanoscale based on density-functional theory, plane waves, and pseudopotentials.
What can PWscf do ?
PWscf performs many different kinds of self-consistent calculations of electronic-structure properties within Density-Functional Theory (DFT), using a Plane-Wave (PW) basis set and pseudopotentials (PP).[1]
In particular:
ground-state energy and one-electron (Kohn-Sham) orbitals, atomic forces, stresses;
structural optimization, also with variable cell;
molecular dynamics on the Born-Oppenheimer surface, also with variable cell;
macroscopic polarization (and orbital magnetization) via Berry Phases;
various forms of finite electric fields, with a sawtooth potential or with the modern theory of polarization;
Effective Screening Medium (ESM) method
Download Dataset:
The environment variable BENCHMARK_DIR will be used throughout the example to refer to the directory containing the AUSURF112 input files.
1
2
3
4
5
6
cd ~
mdkir qe
mkdir qe/ausurf
cd qe/ausurf
wget https://repository.prace-ri.eu/git/UEABS/ueabs/-/raw/master/quantum_espresso/test_cases/small/Au.pbe-nd-van.UPF
wget https://repository.prace-ri.eu/git/UEABS/ueabs/-/raw/master/quantum_espresso/test_cases/small/ausurf.in
Run QE on One Compute Node One GPU
As suggestion rules for runing on GPU QE on HPC and GPU systems:
- 1 GPU : 1 MPI
- Fill the CPU with OpenMP threads
- No task groups (-ntg 1)
- No parallel eigensolver (-ndiag 1), no diagonized?
1
2
3
4
5
$ cd ~/qe/ausurf
$ module unload *
$ module load quantum_espresso/v7.0
$ mpirun -n 1 pw.x -npool 1 -ntg 1 -ndiag 1 -input ausurf.in
Time to finish job is 3 minutes.
Run QE on One Compute Node 4 GPUs
We need to bind UCX/OMPI with script from give URL. One important component behind the script is Nvidia Multi-Process-Service or MPS.
NVIDIA MPS improves the parallel performance by allowing multiple process to instantaneously share GPU compute resources.
Figure: Nvidia Tranditional: Full process isolation

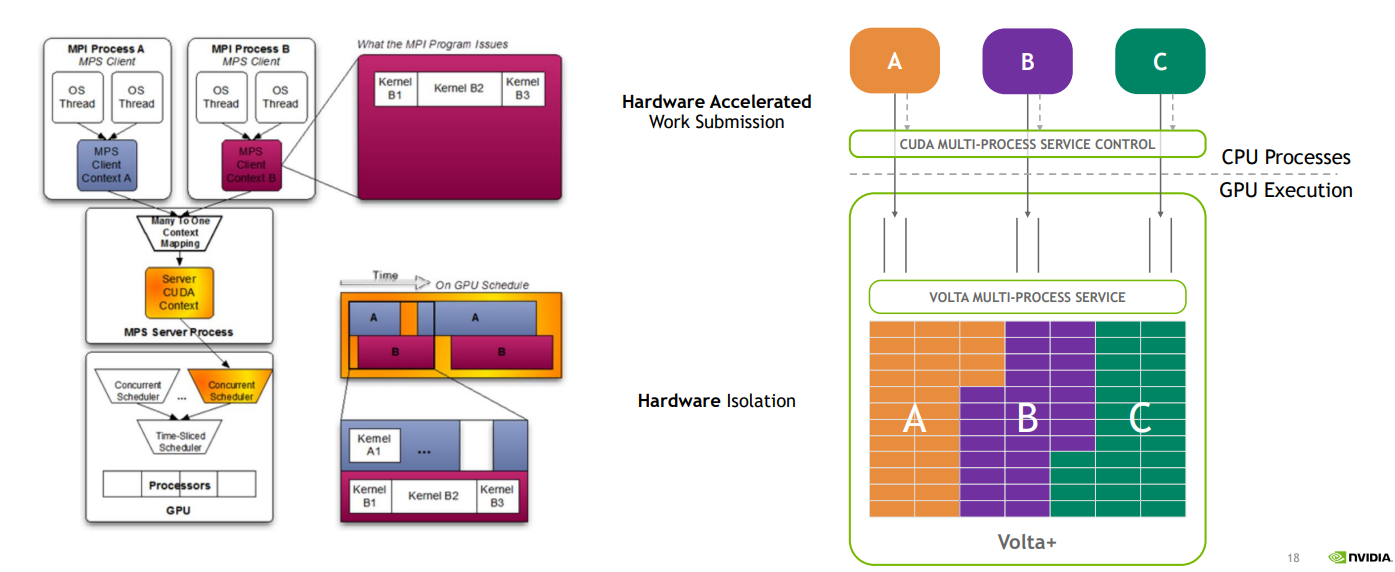

Figure: Nvidia MPS: Full process isolation
Source: https://www.olcf.ornl.gov/wp-content/uploads/2021/06/MPS_ORNL_20210817.pdf
1
2
3
4
5
6
$ cd ~/qe/ausurf
$ wget $ wget https://raw.githubusercontent.com/LStuber/binding/master/binder.sh
$ module unload *
$ module load quantum_espresso/v7.0
$ mpirun -n 4 binder.sh pw.x -input ausurf.in -npool 4
Time to finish job is 2 minutes.
Run QE on Multi-Nodes ?
Later comming soon…
References:
- MaX school on Advanced Materials and Molecular Modelling with Quantum ESPRESSO,
